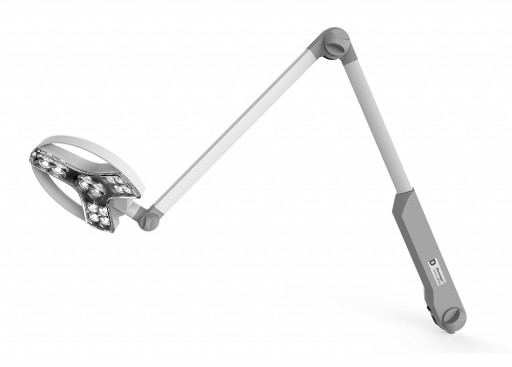

VISIANO 20-2 examination light

Wherever the highest demands on vision apply, uncompromising lighting is irreplaceable. Whether in a general practitioner's or dermatologist's office, in the ENT or gynecology area, in particularly sensitive wards such as neonatology or intensive care: the VISIANO 20-2 is a true all-rounder. Thanks to its unique design, state-of-the-art lighting technology and the highest quality of light, it ensures optimal examination conditions.

• LED technology

• High illuminance 60'000 lx / 0.5 m

• Light field 210 mm

• Precise color rendering Ra >95, R9 >90

• Color temperatures (3500K and 4500K) allow individual contrast vision

• Illuminance can be dimmed in 4 steps

• Highest light quality thanks to diamond optics

• Antimicrobial hygiene function on important luminaire parts

• Simple control unit on the head

• Maximum radius of action (head can be rotated 360°)

• Very good ergonomics thanks to spring-relieved aluminum arm system

• Minimal maintenance costs thanks to LED technology

• Low heat radiation in the light (reduces drying out of the tissue)

• Compliance with normative requirements EN 60601-1 and EN 60601-2-41

- Highest quality of light

thanks to concave luminaire head, diamond optics and premium LEDs, homogeneous light field and high illuminance, low shadowing, first-class color rendering (Ra > 95, R13 > 93)

- durable, safe and economical

low energy consumption, integrated converter, maintenance-free housing, high-quality aluminum arm and durable friction joints

- maximum radius of action and ergonomics

360° rotatable lamp head, large arm reach

- four dimming levels

repeatable light intensities, also as ambient indirect lighting in sensitive areas

- tested safety

Medical device according to IEC 60601, unique in this class

 MODEL

VISIANO 20-2 C T1

Examination lamp VISIANO 20-2 C T1
Fitting: 1 x LED module Energy efficiency class A+
Operating device: Electronic converter
Connected load: 100-240 V; 50/60 Hz
Power consumption: approx. 21 W
Color rendering (Ra): > 95
Protection class: IP 20
Protection class: II
Operation: membrane keypad on luminaire head
Luminaire housing
Material: polycarbonate & acrylic butadiene styrene copolymer (PC & ABS)
Weight (net): approx. 9.0 kg
Power cord: fixed
Mounting: Ceiling mounting, ceiling tube can be cut to length during installation (length: 40-116cm)
Accessories: false ceiling adapter
Standards: EN 60601-1, EN 60601-2-41
Illumination field m: 21 cm
Special features: 2 color temperatures, 4 dimming levels, antimicrobial, rotary feed-through (360° turnover axis)

VISIANO 20-2 P TX

Examination lamp VISIANO 20-2 C T1
Fitting: 1 x LED module Energy efficiency class A+
Control gear: electronic converter
Connected load: 100-240 V; 50/60 Hz
Power consumption: approx. 21 W
Color rendering (Ra): > 95
Protection class: IP 20
Protection class: II
Operation: membrane keypad on luminaire head
Luminaire housing
Material: polycarbonate & acrylic butadiene styrene copolymer (PC & ABS)
Weight (net): approx. 9.0 kg
Power cord: fixed
Mounting: Ceiling mounting, ceiling tube can be cut to length during installation (length: 40-116cm)
Accessories: false ceiling adapter
Standards: EN 60601-1, EN 60601-2-41
Illumination field m: 21 cm
Special features: 2 color temperatures, 4 dimming levels, antimicrobial, rotary feed-through (360° turnover axis)

1. PTX for rolling stand or clamp
2. CT1 for ceiling mounting
